Thermaltake Armor A90 Case


Case Type
Mid Tower
Material SECC
Front Bezel Material
Color Black Interior

Black Exterior

Side Panel
Transparent Window
Motherboard Support Standard ATX & Micro ATX
Motherboard Tray N/A
5.25″ Drive Bay 3
Ext. 3.5″ Drive Bay 1 x 3.5″ with 5.25″ converter
Int. 3.5″ Drive Bay 6 (with 1 x 2.5″ HDD/SSD)
Expansion Slots 7
Front I/O Ports 4 x USB2.0
1 x e-SATA
HD Audio ports
Cooling System -Front (Intake) :
120 x 120 x 25 mm Blue LED fan, 1000rpm, 16dBA;
120 x 120 x 25 mm (optional) or 200 x 200 x 20 mm (optional)
-Rear (Exhaust) :
120 x 120 x 25 mm TurboFan, 1000rpm, 16dBA
-Top (Exhaust) :
200 x 200 x 20 mm Blue LED fan, 800rpm, 15dBA
-Side (Intake) :
120 x 120 mm (optional)
Liquid Cooling Capable Yes
Liquid Cooling Embedded No
Power Supply Supported Standard ATX PSII
Power Supply Included
Dimension (H*W*D) 502 (H) x 210(W) x 515 (L) mm
19.8 (H) x 8.3 (W) x 20.3 (L) inch
Net Weight 8.2 Kg
18.1 Lb
Warranty 3 Year

Average sized mid-tower case, fits almost any type of hardware and is not robust. We will go into details later in the article. For now, let’s take a look at the package in came in.


Front of the box
Back of the box

Thermaltake is as gracious as they usually are with their talent to make attractive package. Back of the box describe most of the features this case has to offer.

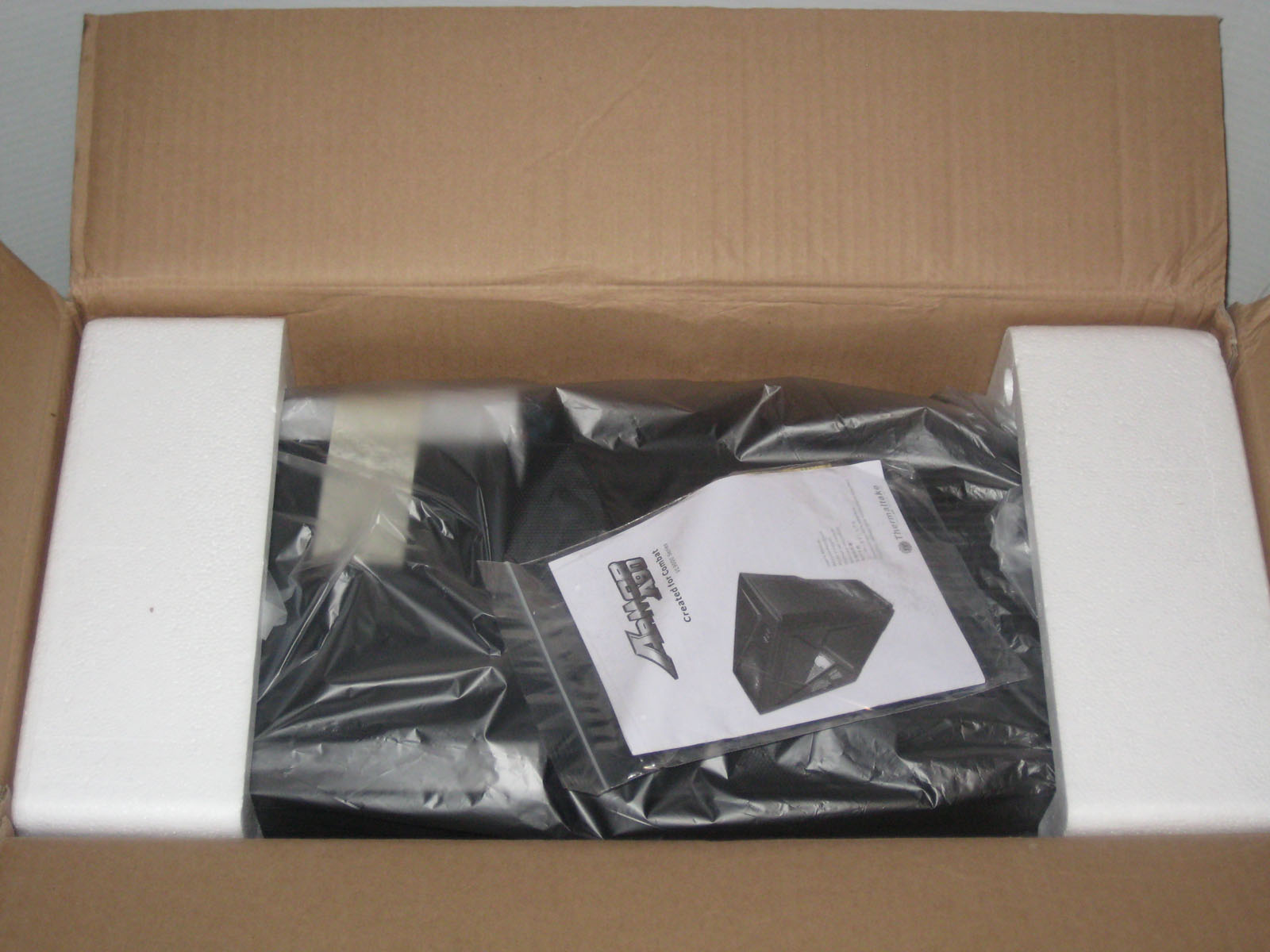

Top of the box
Package contents

The case itself is well fit inside the box with standard plastic bag to protect from scratches and other minor damage. The door on the case was also tapes up so that it will not open on it’s own when you first take out the case and carry it to the place you will be doing your installation.
